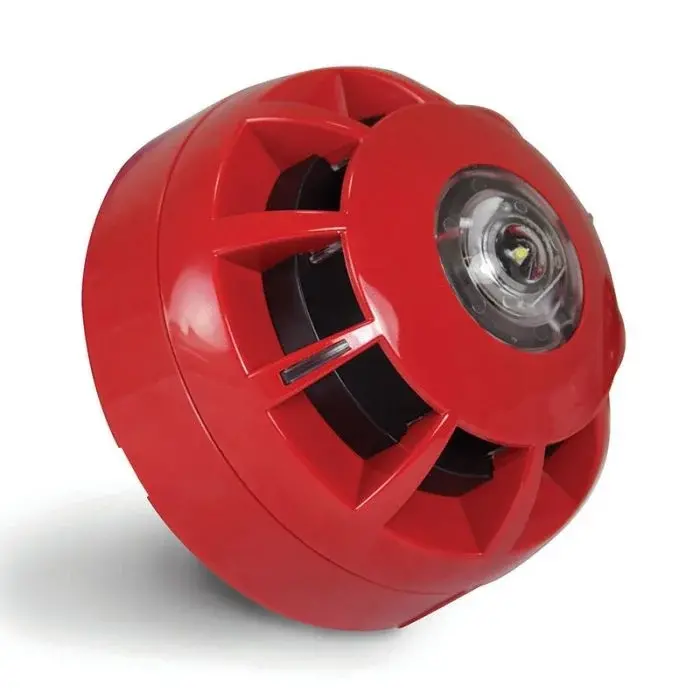

C-TEC ADDRESSABLE CX VOICE SOUNDER & VAD BEACON – RED – EN54-3 & EN54-23 BF453A/CX/SR

Description

C-TEC ADDRESSABLE CX VOICE SOUNDER & VAD BEACON – RED – EN54-3 & EN54-23
Third-party certified to EN54-3 (Sounders), EN54-23 (VADs) and 17 (Isolators) by Intertek.
Provides ‘W-3-3.1’ light distribution when wall mounted (min 0.4 lux over a 3 x 8m cylindrical area).
Can also provide ‘C-3-8’ light distribution when ceiling mounted (min. 0.4 lux over a 3 x 3.1m cuboid area).
Impressive 91dB(A) sound output @ 1m.
Onboard short-circuit loop isolator.
550µA quiescent current.
14mA alarm current @24V DC (VAD lit, sounder on max).
Group addressing facility allows multiple devices to be operated simultaneously.
7 selectable volume levels and up to 15 selectable tone pairs.
IP21C rated.
approvals/certifications Certified to EN54-3, 23 & 17 by Intertek.
Protocol/compatibility Compatible with C-TEC’s XFP/ZFP XP95/Discovery Addressable Fire Panels.
Application/operation Provides W-3-2.1 coverage when wall mounted. Alternatively can be ceiling mounted to provide C-3-8 coverage.
VAD category & coverage W-3-3.1 (30m3 cuboid coverage); C-3-8 (151m3 cylindrical coverage).
Flash rate & colour 0.5Hz / White.
Supply/operating voltage 17 to 28V DC (Sounder); 21 to 28V DC (Sounder/VAD).
Quiescent current 550µA @ 24 VDC.
Nominal SPL (Sound Pressure Level) 91dB(A) when set to tone 1.
Alarm current 14mA (VAD lit, Sounder on max).
Indicators Polling (green LED) & Short Circuit Isolator Active (amber LED).
Product dimensions (mm) 102mm diameter x 63mm deep.
IP Rating IP21C (Type A).
Weight 175g.
Operating conditions/temperature -10ºC to +55ºC. Max. 95% RH (Non-condensing).
